HD-series heavy duty shredders driven by double hydraulic motors
These series of heavy duty two shaft low speed, high torque shredders guarantee the highest degree of reliability and performance when processing high volumes and very demanding material.
Each shaft is independently driven by a dedicated hydraulic motor which allows maximum power to each shaft. Each drive can be set to vary the speeds in the cutting chamber optimizing performance under heavy loads.
A dedicated PLC user-friendly touch-screen controls the setting and working of the shredder.
Contact us
Each shaft is independently driven by a dedicated hydraulic motor which allows maximum power to each shaft. Each drive can be set to vary the speeds in the cutting chamber optimizing performance under heavy loads.
A dedicated PLC user-friendly touch-screen controls the setting and working of the shredder.
Heavy duty machined construction with double indipendent drive on each shaft.
Hydraulic power pack in which the two indipendent hydraulic drives are installed.

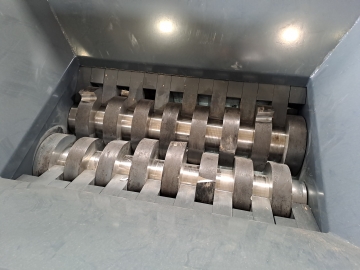

The shredders can be fitted with blades of various thicknesses and profiles depending on the type of material they must processed.
Available models
ITS1300xX1100HD - hydraulic drive 2x55 kW / 2x75 kW - blades thickness 50-75-100 mm
ITS1500x1100HD - hydraulic drive 2x55 kW / 2x75 kW - blades thickness 50-75-100-150 mm
ITS1800x1100HD - hydraulic drive 2x75 kW / 2x90 kW / 2x110 kW - blades thickness 75-100-150mm
ITS1800x1500HD - hydraulic drive 2x90 kW / 2x110 kW - blades thickness 100-150 mm
